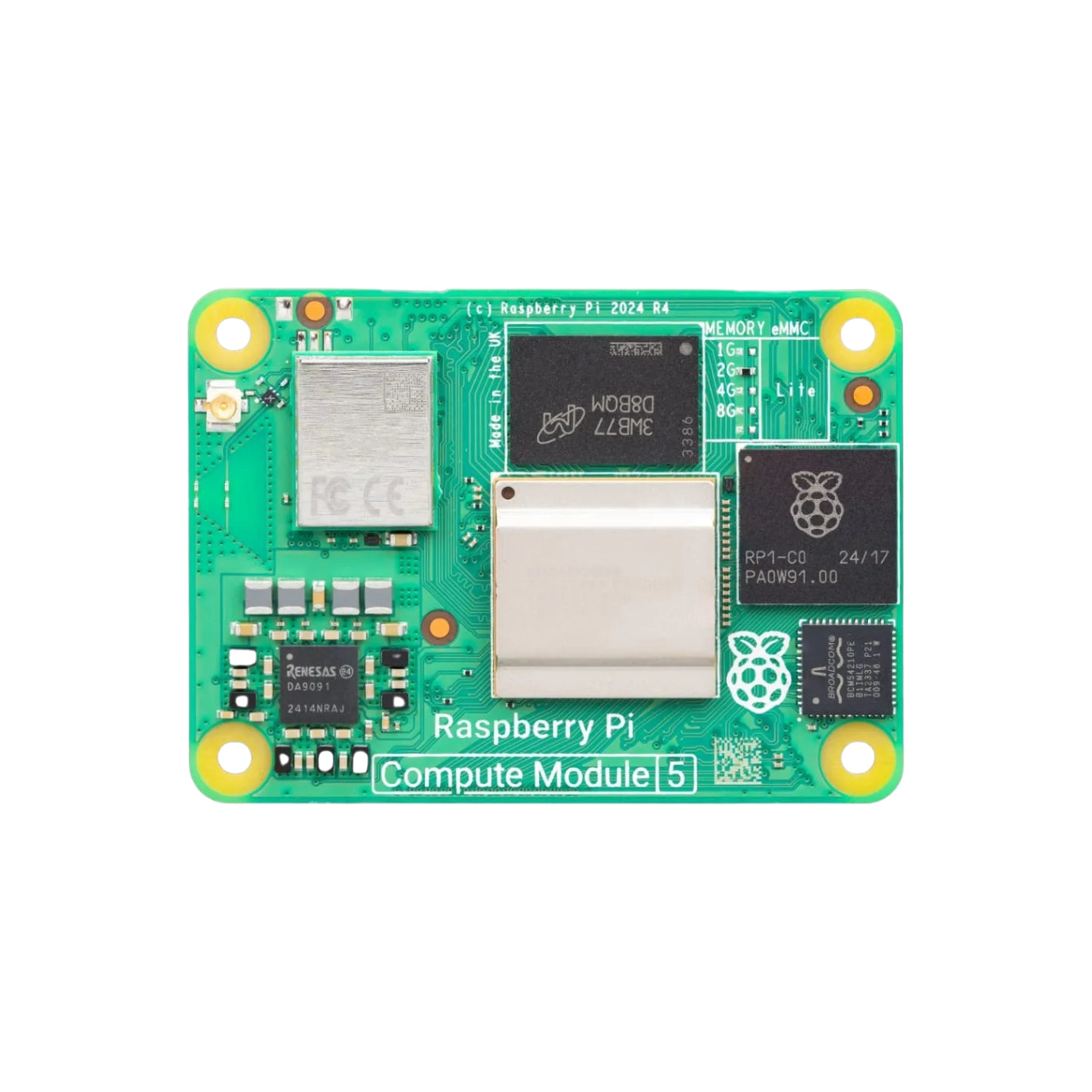

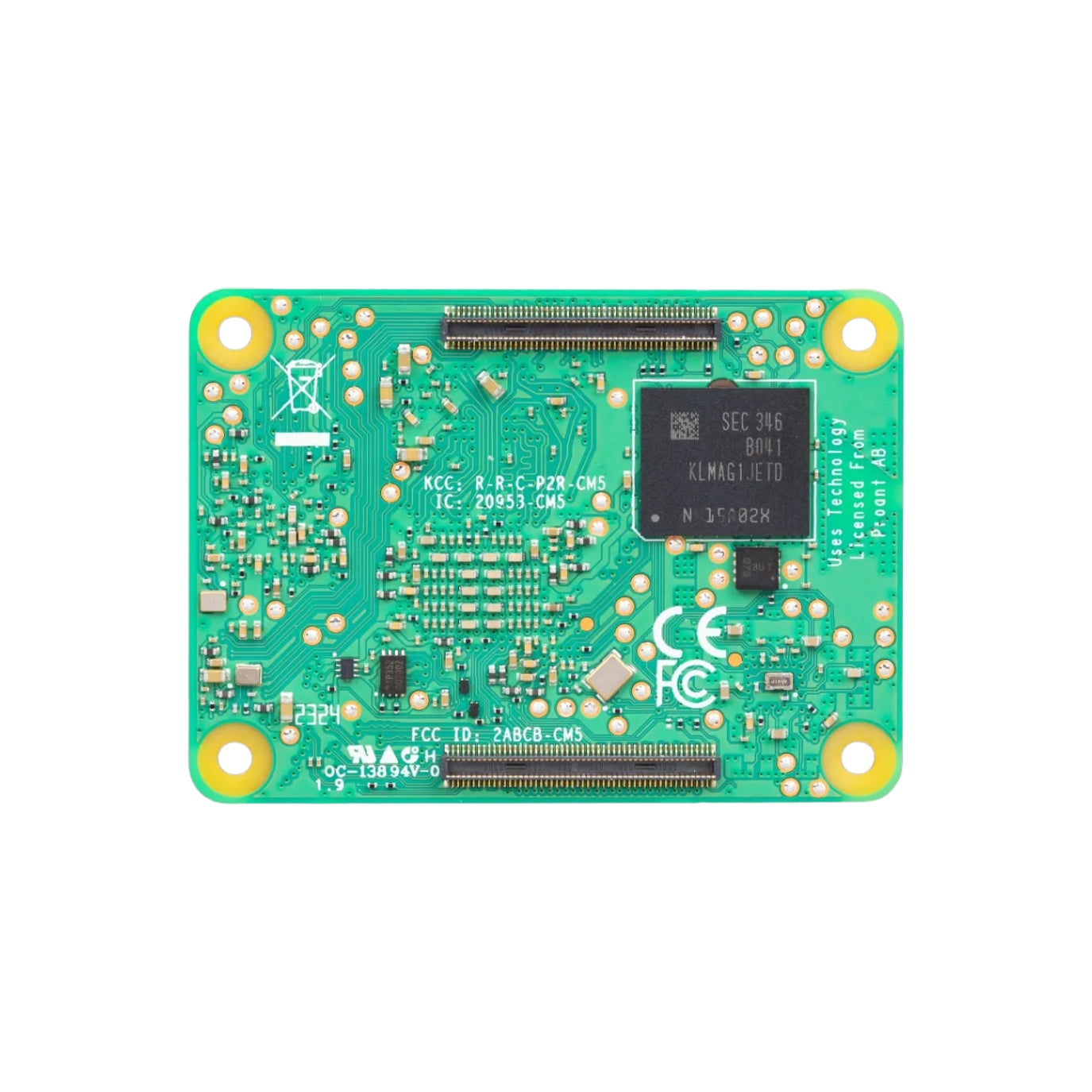

Raspberry Pi Compute Module 5 – (2GB–16GB RAM)

Rs. 5,310.00Sold out

RAM:

Storage:

Wireless:

This option is currently sold out. Message us on WhatsApp or send an enquiry and we’ll let you know when it’s back.

The Raspberry Pi Compute Module 5 (CM5) brings the full power and performance of the Raspberry Pi 5 to a compact system-on-module (SoM) design, purpose-built for industrial and embedded applications. Featuring the Broadcom BCM2712 quad-core Arm Cortex-A76 processor @ 2.4GHz, the CM5 offers desktop-class computing performance in a flexible, small form factor ideal for integration into custom systems.

With up to 8GB LPDDR4X-4267 SDRAM, optional eMMC flash storage (up to 64GB), and a choice of Wi-Fi 5 (802.11ac) + Bluetooth 5.0 wireless connectivity, the Compute Module 5 provides unmatched versatility and scalability for product developers, OEMs, and advanced hobbyists.

Key Features

Broadcom BCM2712 Quad-Core Cortex-A76 CPU @ 2.4GHz – same next-gen processor as Raspberry Pi 5
LPDDR4-4267 SDRAM with ECC – 1GB, 2GB, 4GB, or 8GB memory options
Optional eMMC Flash Storage – 0GB (Lite), 16GB, 32GB, 64GB, or 128GB variants
Dual 4Kp60 HDMI Output – supports dual 4K displays simultaneously
Advanced Graphics – OpenGL ES 3.1, Vulkan 1.2, and 4Kp60 HEVC hardware decoder
Dual-band Wireless Connectivity – 2.4GHz/5GHz Wi-Fi 802.11ac and Bluetooth 5.0 with BLE
Flexible Antenna Design – onboard or external antenna option with modular certification
Rich I/O Interfaces – PCIe Gen 2, USB 3.0, CSI/DSI camera and display support, multiple GPIOs
Wide Operating Range – industrial-grade temperature range (-20°C to +85°C)
Compact Design – 55mm × 40mm × 4.7mm, perfect for embedded systems

Processor & Performance

Specification	Details
Processor	Broadcom BCM2712, Quad-core 64-bit Arm Cortex-A76 (Armv8) @ 2.4GHz
GPU	VideoCore VII supporting OpenGL ES 3.1 & Vulkan 1.2
Video Decoder	4Kp60 HEVC
Cache	Per-core L2 cache + shared L3 cache

The Compute Module 5 delivers the same high performance as the Raspberry Pi 5 but in a space-saving module designed for OEM integration and embedded solutions.

Memory & Storage Options

RAM: 1GB / 2GB / 4GB / 8GB LPDDR4-4267 SDRAM (with ECC support)
Storage: 0GB (Lite), 16GB, 32GB, 64GB, or 128GB eMMC Flash

A Lite version (without onboard eMMC) allows developers to use external storage for cost-sensitive or custom applications.

Display & Camera Interface

2 × HDMI 2.0 ports – dual 4Kp60 output
2 × 4-lane MIPI ports – support for both CSI (camera) and DSI (display) interfaces
Flexible configuration allows multiple combinations for camera and display integration.

Connectivity

Type	Details
Wi-Fi	Dual-band 2.4GHz / 5GHz 802.11 b/g/n/ac wireless LAN
Bluetooth	Bluetooth 5.0 with BLE
Antenna	Onboard trace or external antenna (software switchable)
Ethernet	Gigabit Ethernet via baseboard interface
PCIe	1 × PCIe Gen 2 (5Gbps) root complex
USB	2 × USB 3.0 (5Gbps) + 1 × USB 2.0
GPIOs	Up to 30 GPIO pins (1.8V / 3.3V logic levels)

Peripheral Interfaces

Up to 5 × UART
Up to 5 × I²C
Up to 5 × SPI
1 × SDIO Interface
1 × DPI (Parallel RGB Display)
1 × I²S Audio Interface
Up to 4 × PWM Channels
Up to 3 × GPCLK Outputs

Power & Operating Conditions

Power Input: Single +5V PSU (supports USB PD up to 5A @ 5V)
Operating Temperature: -20°C to +85°C (industrial-grade)
Dimensions: 55mm × 40mm × 4.7mm
Mounting: 4 × M2.5 mounting holes

Ordering Information

Each Raspberry Pi Compute Module 5 variant is identified by its part number, indicating wireless, RAM, and eMMC capacity.

Wireless	RAM	Storage	Example Part Number
No	2GB	16GB	CM5002016
Yes	4GB	32GB	CM5104032
No	8GB	Lite	CM5008000
Yes	8GB	32GB	CM5108032

Example Code Format: CM5[Wireless][RAM][eMMC]
(e.g., CM5102032 = Wireless + 2GB RAM + 32GB eMMC)

The Raspberry Pi Compute Module 5 delivers desktop-class performance in an embedded form factor — making it the perfect choice for engineers, developers, and product designers seeking performance, reliability, and flexibility in one powerful module.
